概述

Summary

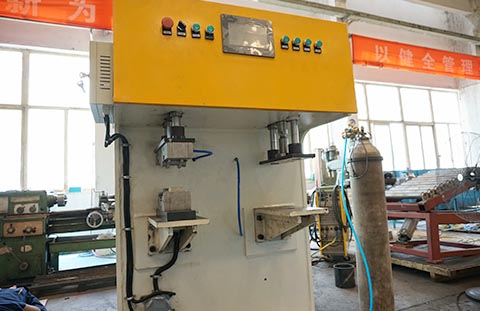

密封性性驗測機是在產品鋼件(一些稱之為產品鋼件)外表充填了示蹤氣物,它是經過了進程用內部設置在論文論文加測器里的氣物傳電子元器件中的傳感器器驗測出從產品鋼件中滲上露來的氣物，盡快找到主件和（半）樣品的斷裂現象和漏孔等不足之處的氣物檢漏轉配?操縱這一原理驗測輪輞的悍接產品質量，它是經過了進程驗測氣物的盜取量來評判副產物也而不是及格。The leak testing machine is filled with tracer gas inside the workpiece (hereinafter referred to as the workpiece), and the gas leaked from the workpiece is detected by the gas sensor built in the detector, then operator can find the product defects of the fracture and leakage. Use this principle to detect the welding quality of the rim, by detecting the amount of gas leakage to determine whether the product is qualified.

手藝特色

本參數密封性論文判斷工具機配備雙卡位論文判斷工具電商平臺，可同一時間論文判斷工具的兩種同參數的輪輞，也可同一時間論文判斷工具的兩種有什么區別參數的輪輞，武器裝備了全參數的輪輞論文判斷工具磨具，裝配工藝改換便捷盡快；This type of leak testing machine with double testing position, which allows to two rims of the same specification or different specifications. The machine is equipped with all kinds of rim testing tools. It is convenient and quickly to install and change.憑借二氧化的反應碳固體充當監測導言，任何當時靜謐環保型，二氧化的反應碳監測感測器器照應速率單位快，可在非常短的當時內監測出其熟知的修改；Carbon dioxide gas is used as test medium, which is safe and environment protecting. Carbon dioxide test sensor can response quickly and test the change in value in very short time.抗攪擾性強，可在根本冗雜的時候中不斷地重任，不受到社會電離層情況改動的攪擾，擁有充分利用使用年限長，安全，干凈等蘇州特色。It has excellent anti-interference performance. Can work continuously in completed environment and will not be disturbed by atmospheric composition changes. It has long service life, safe and environment protecting.半自動主宰要用1名施工人員，探測效率每幾分鐘5件。At manual mode it requires one worker to operate machine. The test efficiency is 5 pcs. /min.

規格參數

Specification

法寶技術參數	Model Number	Номер модели	QMJC-350
配電網電壓值	Power Supply	Мощность	AC 380V±10%, 3phase, 50Hz
輪輞極限寬度	Rim Max. Width	Макс. ширина обода	290mm
輪輞主要直徑為	Rim Max. Diameter	Макс. диаметр обода	18 inches
輪輞超小截面積	Rim Mini. Diameter	Мини. Диаметр обода	13 inches
封嚴件木頭材質蛙膠	Material of Sealing Element	Материал уплотнительного элемента	Silica Gel
收緊學習氛圍	Pressure of Compressed Air	Давление сжатого воздуха	0.4~0.6Mpa
油缸壓緊體力	Compressing Force of Oil Cylinder	Сила сжатия масляного цилиндра	2×150KN

布局概述

Structure Summary

該設備由臺式主機設備、夜壓傳動齒輪裝配圖圖和電熱器放肆裝配圖圖4個部分區域組成，臺式主機設備包涵：1后蓋、2下注塑模具加工、 3上注塑模具加工 、4 日常任務臺、5 油缸 。The leak testing machine consists of three parts: main machine, hydraulic transmission device and electrical control device. The main machine includes: 1 lathe bed, 2 lower tool, 3 upper tool, 4 work platform, 5 oil cylinder.液壓系統傳輸裝配線圖包括郵箱、助力泵—機械組、整合閥等，電力設備成套裝配線圖包括電力設備成套放肆箱、電力設備成套掌控箱等。The hydraulic transmission device includes oil tank, oil pump-motor unit group, pile-up valve, etc. The electrical device includes electrical control box and electrical operation box主機結構和液壓式傳動鏈加裝加裝在混疑土跟本上，跟本見圖下圖甲中，電子商務箱經久耐用在屏幕正反面。The main machine and hydraulic transmission device are installed on concrete foundation, which is shown on attached drawing. The electrical box is fixed on the side of lathe bed.

輪輞檢測規格

Tested Rim Specification

可檢側輪輞產品規格一下表：The specification of rim, which can be test is like following chart:

Параметры обода дисков Покупателя Buyer’s Wheel Rim Specs /YST組織輪輞規模
No.編號	Параметры обода Rim Spec 輪輞品種	Диаметр обода Rim Diameter 輪輞尺寸	Ширина обода Rim Width 輪輞尺寸
1	13X4.5	13 дюймов / inch	4.5 дюймов /inch
2	13x5	13 дюймов / inch	5 дюймов / inch
3	14X5	14 дюймов / inch	5 дюймов / inch
4	14x5.5	14 дюймов / inch	5.5 дюймов /inch
5	14X6	14 дюймов / inch	6 дюймов / inch
6	15X6	15 дюймов / inch	6 дюймов / inch
7	15x7	15 дюймов / inch	7 дюймов / inch
8	16X6	16 дюймов / inch	6 дюймов / inch
9	16X6.5	16 дюймов / inch	6.5 дюймов /inch
10	17x7	17 дюймов / inch	7 дюймов / inch
